Devi DEVIpipeguard 60 Industry Heating Cable (60W/m@10°C) - 5 Years Warranty
Devi DEVIpipeguard 60 Industry
Cable type: Twin conductor, Product version: Cut-to-length, Heating principle: Self-limiting, Application: Pipe / tank frost protection
DEVIpipeguard™ Industry is a self-limiting heating cable that is mainly used for frost protection of pipes and for temperature maintenance in applications up to 120 °C powered or 190 °C unpowered cable. The cable allows steam cleaning in pipes. The heating element, the insulation and the outer jacket of DEVIpipeguard™ Industry are made of fluoropolymers. Fluoropolymer outer jacket offers increased protection against chemicals (oil and fuel) and abrasion. A temperature-dependent resistance element between two parallel-guided copper conductors regulates and limits the heat output of the heating cable. This power setting takes place at every point of the heating cable, according to the ambient temperature prevailing there. If the temperature rises, the power of the cable is reduced. This self-limiting prevents overheating of the cable, even if it is overlaid. The heating cable can be cut off at desired length by the parallel current supply. This simplifies planning and installation. All self-limiting heating cables must be over-temperature protected by a thermostat, as the output will decrease, but never be zero. The installation of a thermostat is recommended.
Benefits
- Cut to length on site
- PVC free
- UV stable
Product Details
| Gross weight | 66 Gram | Filler material | TPE |
| Net weight | 66 Gram | Flame retardant | Yes |
| Application | Pipe / tank frost protection | Heating principle | Self-limiting |
| Approval | CE, EAC | Installation temperature [°C] [Min] | -40°C |
| Approval standard | DIN VDE 0254: 1994-06 | Lead free | Yes |
| Bending diameter [mm] [Min] | 50 mm | Non operating temperature [°C] [Max] | 190°C |
| Cable height [mm] | 4.8 mm | Operating temperature [°C] [Max] | 120°C |
| Cable output [W/m@°C] | 60W/m@10°C | Outer sheath | Fluorpolymer |
| Cable screen | Tinned copper braid | Product group | Heating Cables |
| Cable type | Twin conductor | Product version | Cut-to-length |
| Cable width [mm] | 10.2 mm | Supply voltage [V] AC | 230 V |
| Conductor insulation | Self-limiting matrix | Element IP Class | IPX7 |
| Cut to length | Yes | Warranty [Year] | 5 |
| EAN | 5703466251584 | Warranty type | 5-year product warranty |

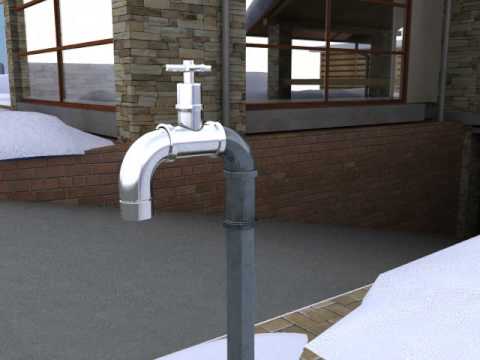

DEVI - Pipe tracing
