DEVIreg™ Display Connect is a smart underfloor heating thermostat designed for precise control of electric floor heating systems. Combining modern connectivity with intuitive operation, it offers both Bluetooth® and Zigbee connectivity options, enabling flexible temperature management based on room temperature, floor temperature, or a combination of both.
Designed for fixed installations, the thermostat features a unique two-part construction that allows compatibility with a wide range of wall frames, making it an adaptable solution for residential and commercial projects. The integrated dial and display provide simple, user-friendly control, while the guided setup wizard in the Bluetooth app helps streamline commissioning and daily operation.
The thermostat includes programmable scheduling functions and energy management features designed to support efficient heating control. Its optimum start (pre-heating) function automatically calculates when heating should begin to help achieve the desired temperature at the scheduled time. This functionality can contribute to more efficient heating operation depending on building characteristics, installation conditions, and user settings.
Complying with Ecodesign Lot 20 requirements, DEVIreg™ Display Connect supports modern building control strategies while providing installers, specifiers, and end users with reliable temperature management for electric underfloor heating applications. The thermostat is compatible with a wide range of floor sensors, offering flexibility for new installations and renovation projects.
One Device, Three Ways to Use
- Fit & Forget — ready to use straight out of the box, no apps required
- Bluetooth — fast, intuitive setup with step-by-step guidance in the DEVI Control app
- Zigbee — remote control via the DEVI Connect gateway (140F1166) or any compatible Zigbee gateway
Benefits
- Eco design compliant Lot 20
- Works out of box
- Bluetooth and Zigbee thermostat
- In app setup wizard
- Fits extensive frame selection
- Compatible with 7 sensors types
- Sensor failure monitoring
- Adaptive PWM control
- Pre Heating
- Multilanguage app
- Shine through display
- Quick exchange system
- Multiple control modes
- Tested best in class design
In the Box
- DEVIreg™ Display Connect thermostat
- NTC 15 kΩ @ 25 °C floor sensor, 3 m
- Front panel with R2.5 or R8 corner radius
- Adapter frames for common 55 x 55 mm frame systems
Product Details
| Nominal voltage | 220 V - 240 V~ 50/60 Hz |
| Standby power consumption, max | 0,2 W |
| Relay: Resistive load Inductive load |
16A / 3680W @ 230V Cos Φ = 0.3 max. 1A |
| Compatible sensors | NTC 15 kΩ @ 25 °C, 3 m. (default) NTC 2 kΩ @ 25 °C NTC 6.8 kΩ @ 25 °C NTC 10 kΩ @ 25 °C NTC 12 kΩ @ 25 °C NTC 33 kΩ @ 25 °C NTC 47 kΩ @ 25 °C |
| Regulation | PWM - Pulse Width Modulation |
| Frost protection | 4 °C - 14 °C (default 5 °C) |
| Temperature range | 15 °C to 35 °C (room) 5 °C to 35 °C (45 °C with break out) (floor) |
| Cable specification for connectors terminals | Max: 1 x 4 mm2 or 2 x 2.5 mm2 |
| Ball pressure test | 75 °C |
| Pollution degree | 2 (domestic use) |
| Software class | A |
| Controller type | 1 B |
| Storage temperature and conditions | -25 °C to 60 °C, 90% RH non-condensing |
| Operating temperatures and conditions | 0 °C to 35 °C, 90% RH non-condensing |
| IP class | 21 |
| Protection class | Class II - |
| Immunity against voltage surges | Over Voltage Category III |
| Transmission frequency (GHz) | 2.400 – 2.4835 GHz |
| Transmission Power (dBm) | <10 dBm |
| Colour | RAL9016 Polar white |
| Battery type or Name | Super Capacitor |
| Battery back-up time, min. | 1 hour |
| Dimensions (H/W/D): | 85 mm x 85 mm x 20-24 mm (in-wall depth: 22mm) |
| Weight, net | 204 g |
| EAN | 5703466250396 |
| Warranty | 5 years |
Standard Compliance
- Ecodesign class: TW (f4)
- Radio Equipment Directive
- LVD 60730-1, -2-7 and -2-9
- EMC EN 301 489 -1 and -17
- RF EN 300328
First Time Setup of DEVI Connect Zigbee Gateway and DEVIreg Display Connect
DEVIreg Display Connect thermostat: unpacking
DEVIreg Display Connect: installation

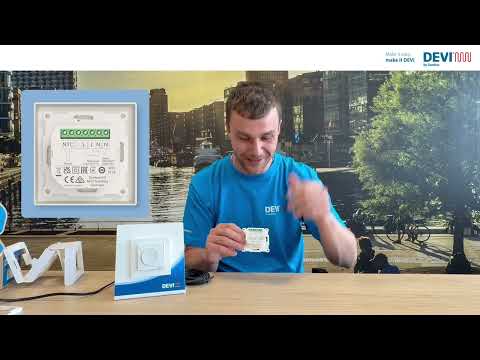

DEVIreg Display Connect: wiring
DEVIreg Display Connect: first powering
DEVIreg Display Connect: breakout and functionality
DEVIreg Display Connect: regulation modes
DEVIreg Display Connect: placement, replacement, upgradability
DEVIreg Display Connect: factory reset
