Sigma Jolly Edge M14 Tile Mitre and Bullnose Machine
Description
Sigma Jolly Edge M14 Tile Mitre and Bullnose Machine
The Sigma Jolly Edge is a precision tile edge profiling machine for creating "Jolly" (mitre) and "Half-Bullnose" (round profile) finishes on tiles and slabs including porcelain gres, marble, granite and glass.
By sliding on the edge of the tile or slab, the Jolly Edge guarantees uniformity of processing along the entire length of the edge, copying the physiological curves of the slab — something that would not be possible with a cutter guided by a rigid guide.
Key Features
- Dual Configuration: Jolly (mitering) using a cutting disc, or Half-Bullnose (profiling) using a shaped grinding wheel
- Jolly Mode: Miter at any angle between 40° and 50°, with edge adjustment
- Half-Bullnose Mode: Round chamfers with radius 6, 8 or 10mm
- Tile Thickness: Processes tiles 5–20mm thick
- Tile Size: From 30cm to infinity in a single pass
- Universal Attachment: M14 thread for any grinder from 700 to 1400W
- Dust Extraction: Prepared for dust-free dry cutting with universal vacuum connection
- Wet or Dry: Designed for both wet and dry operation — use with optional Waterkit for adjustable water jet
- Wide Sliding Support: Ensures perfect stability while working, non-scratch material
- Ergonomic Handles: Excellent grip without losing stability when working on top of the tile
- Complete with: Diamond cutting disc d.115mm turbo (Art. 75B)
Optional Accessories
- Art. 37C Support Kit: Table fixing kit for bench mounting — ideal for series production of small parts like skirting boards. Can be fixed to the Sigma Workbench without tools.
- Art. 87E4 Waterkit: Cooling system with water nebulisation (10L) for improved finish and reduced diamond tool wear
- Diamond Grinding Wheels: Vacuum (300m duration) and Long Life (1000m duration) options available in 6, 8, and 10mm radius
Technical Specifications
| Model | Art. 37A3D (M14 thread) |
| Weight | 4.5kg |
| Box Weight | 5.8kg |
| Box Dimensions | 57 x 39 x 25cm |
| Disc Capacity | Max. 125mm |
| Grinder Compatibility | 700–1400W with M14 thread |
| Tile Thickness Range | 5–20mm |
| Minimum Tile Size | 30cm |
| Miter Angle Range | 40°–50° |
| Bullnose Radius Options | 6mm, 8mm, 10mm (with compatible grinding wheels) |
Video gallery

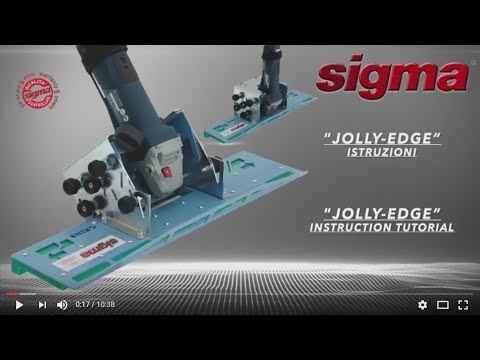

Sigma JOLLY EDGE detailed instructions

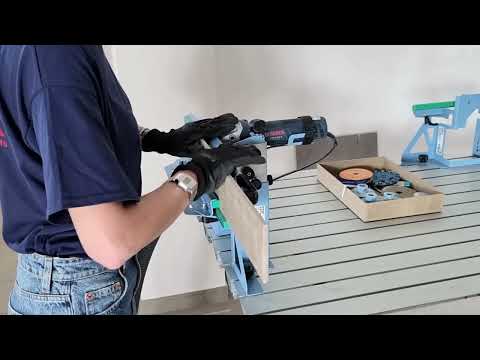

JOLLY-EDGE 37A3D

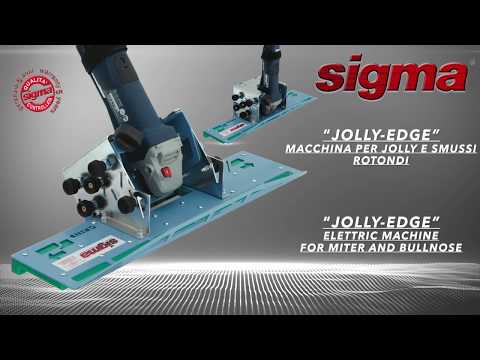

Sigma JOLLY-EDGE presentation
Features
MPN - Manufacturer Part Number
37A3D
