Makinex Power Generator 10 kVA Petrol Dual Phase
Need help with technical specifications or product compatibility?
Chat with Ask TradieCart, our AI specialistMakinex Power Generator 10 kVA Petrol Dual Phase
Light, portable 10kVA 415V/240V 3-phase generator
Empower with Dual-Phase Precision. This compact and lightweight petrol generator delivers 10kVA of power for both single-phase and 3-phase equipment. With compatibility for inductive load devices, it features an advanced radial flux alternator for high-frequency operation. Experience easy transport and minimise injury with its light and compact design, complemented by large wheels for effortless job site manoeuvrability. Onboard RCD and RCBO protection guarantee safety for equipment and users alike.
Know the Product
The 10kVA 415/240V generator is ideal for professionals in the construction and flooring industries. Suitable for use in rental yards, construction sites, and rural areas, it provides a convenient, compact, portable way to power 240V single phase and 415V three phase equipment.
Weighing a little more than 100 kilos you can have the 10kVA generator off your truck and in position where it is needed, with no fuss at all. Designed with advanced magnetic flux alternator technology the generator produces power from a much smaller package than competitive generators with the same rating.
This light, compact 10kVA petrol generator packs a big punch for its small size. It simultaneously powers two single phase tools up to 11A and one three-phase 11A/415V machine. And with power outlets included as standard, there is no messing with voltage switches, just plug in and go.
Top reasons for choosing Makinex generators
- All Makinex products are designed and built to endure the rigors of the rental market.
- Advanced alternator tech saves 15% fuel versus similar generators using the same engine.
- Makinex stands behind its products with technical support, servicing and spares.
- Designed for maximum convenience and ease for concrete, masonry and flooring pros.
Features and Benefits
Challenges on the Job
- Waiting for electrician to hook up 3-phase power
- Getting the required power close to your work
- Lifting heavy generators on and off vehicles
- Moving generators around a job site easily
Solution Benefits
- Light, portable 10kVA 415V/240V 3-phase generator
- 15% more power than competitors using same engine
- 3-phase and single phase outlets on same machine
- Power multiple medium-duty tools at the same time
- High frequency and induction load gear compatible
- Fold down handle makes it easy to move and store
- Large wheels for maneuverability around job site
Specifications
| Model | GEN-10P-AU-240-20 |
| Voltage | 240V Single Phase; 415V Three Phase |
| Frequency | 50HZ |
| Max Rated Output | 10kVA / 8kW (max cumulative power across provided sockets) |
| Rated power factor | 0.8 |
| Max Amps single phase | 11A @ 240V 1Θ |
| Max Amps three phase | 11A @ 415V 3Θ |
| Sockets provided | 2 x 15A sockets 1-phase (max 2.7kW per socket) + 1 x 20A 3-phase socket (max 8kW) both RCBO protected |
| Dry weight | 100kg |
| Noise level (7m) | No load - 72dB 50% load - 76dB 100% load - 78DB |
| Engine type | Single cylinder air cooled petrol |
| Engine model | Honda gx390 |
| Starting system | Pull start |
| Displacement | 389cc |
| Fuel economy | 2.3 L/H @ 50% load |
| Fuel tank | 6L |
| Dimensions | 598mm(L) x 609mm(W) x 1162mm(H) |
Safety Compliance
Model no. GEN-10P-AU-240-20. Onboard RCD and RCBO protection guarantee safety for equipment and users alike. The 2 x 15A single-phase sockets and the 1 x 20A three-phase socket are both RCBO protected.
Makinex Generators (10, 16, 23 and 32kVA)

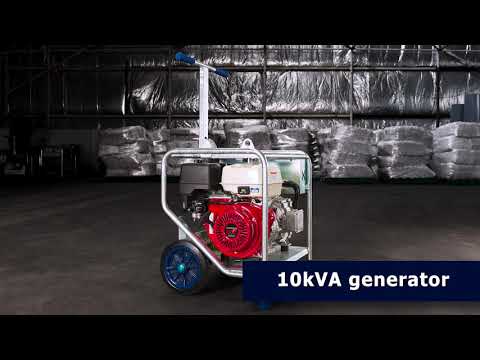

Makinex 10kVA petrol generators
