Makinex Power Generator 32 kVA
Power Generator 32 kVA
Dual Phase Power Generator 32kVA 415/240V
Less than one third the size and weight of comparable towable and SKID generators, the 32kVA is the world’s smallest 3-phase 415V generator in its class. This is a game-changer for power-hungry contractors and tradesmen in the concrete, masonry and flooring industry.
Avoid all the hassle of a cumbersome heavy-duty generator parked at the curb. The 32kVA 415/240V is so small it fits in your equipment trailer or truck, and gets through standard doorways. So, you can put it right where it is needed, and eliminate the hazard and power loss of long cables.
The 32kVA uses permanent-magnet brushless alternator technology. This guarantees clean 415V three phase power and robust power supply.
These advanced alternator features yield 15% more power from the same engine, than is possible with conventional copper wound alternators, while requiring fewer electronic components. This makes for less wear and tear and a longer lifespan.
Equipped with industry standard 2x32A 3 phase and 2x15A single phase outlets, the 32kVA 415/240V can power multiple pieces of single phase and 415V three phase equipment at the same time with no requirement for voltage selection. Just plug equipment into the right outlet and power it up!
Powered by the Honda GX690 horizontal engine you can be sure of great fuel economy, low emissions and a perfectly balanced engine with low vibrations.
Top reasons for choosing Makinex generators
- All Makinex products are designed and built to endure the rigors of the hire market.
- Advanced alternator tech saves 15% fuel versus similar generators using the same engine.
- Makinex stands behind its products with technical support, servicing and spares.
- Designed for maximum convenience and ease for concrete, masonry and flooring pros.
Features and Benefits
Challenges on the Job
- Curbsite power is inconvenient and expensive
- 5% loss in voltage every 100ft of long cables
- Getting clean 32A 415V power close to work area
- Towing generator to site or having it delivered
Solution Benefits
- Light and small enough to carry on your truck
- Single and 3-phase power generation
- Powers 240V and 415V equipment at the same time
- Simultaneous single and three phase equipment
- Highly portable, thanks to four large wheels
- High frequency and induction load gear compatible
Specifications
| Frequency | 50HZ |
| Voltage | 415V three phase; 240V single phase |
| Max output | 32kVA / 25.6kW (max cumulative power across provided sockets) |
| Sockets Provided | 2 X 15A 1-phase sockets (max 3.6kW per socket) + 2 X 32A 3-phase sockets (max 23kW) RCBO protected |
| DRY Weight | 320kg |
| Noise level (7m) 50% load | 72-76dB |
| Rated power factor | 0.8 |
| Engine type | Twin cylinder Air Cooled Petrol |
| Engine model | Honda GX690 X 2 |
| Starting system | Electric / Key Start |
| Engine Fuel economy | 9.8 L/h @ 50% Load |
| Fuel tank | 50 L |
| Dimensions | 1105mm(43.5in) (L) x 632mm(24.8in) (W) x 1206mm(40.3in) (H) |
Makinex Generators (10, 16, 23 and 32kVA)

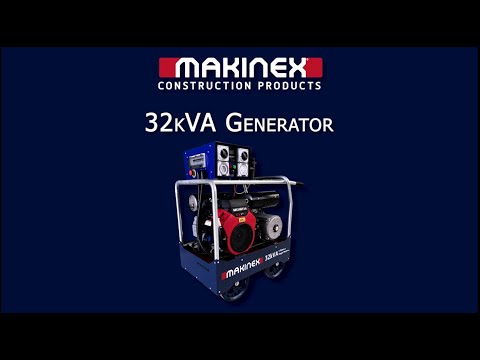

Makinex 32kVA generator
